Lantronix EDS5000 Series

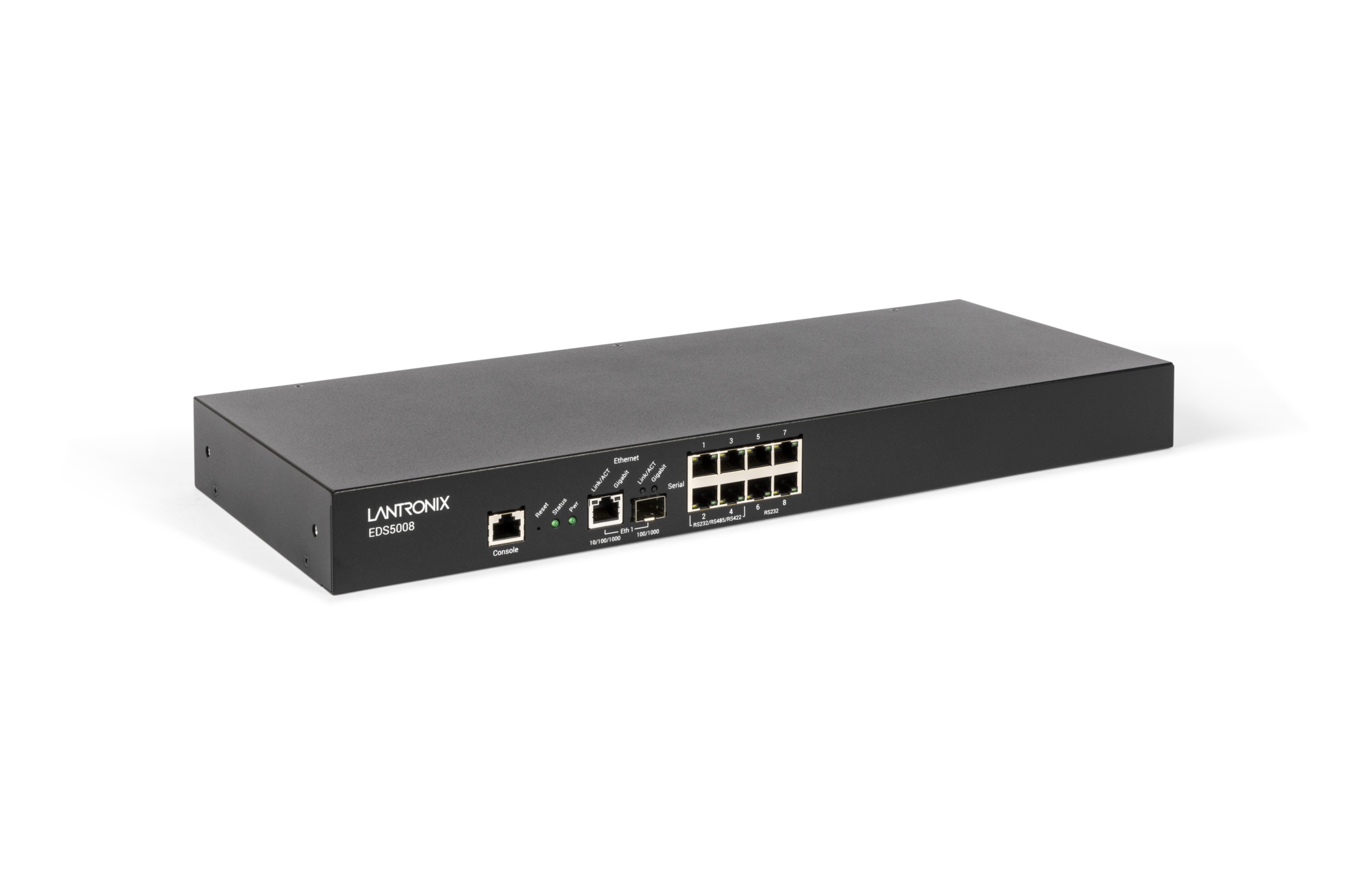

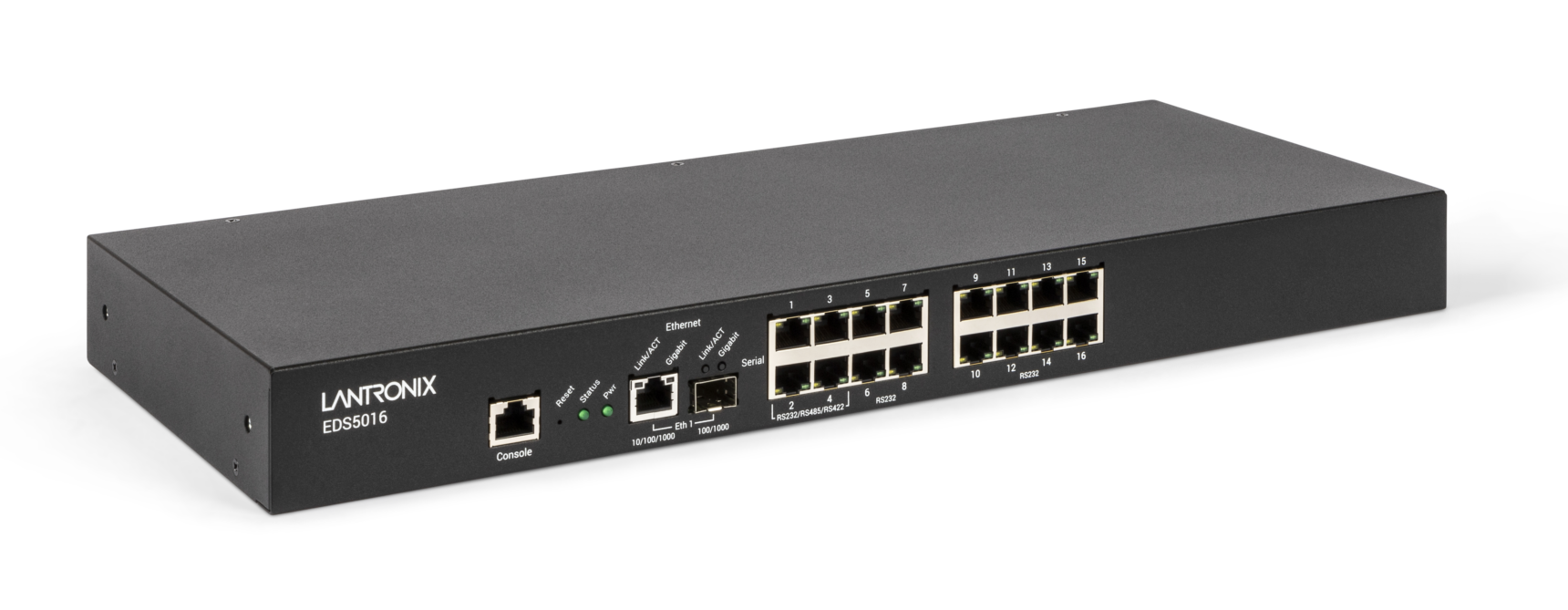

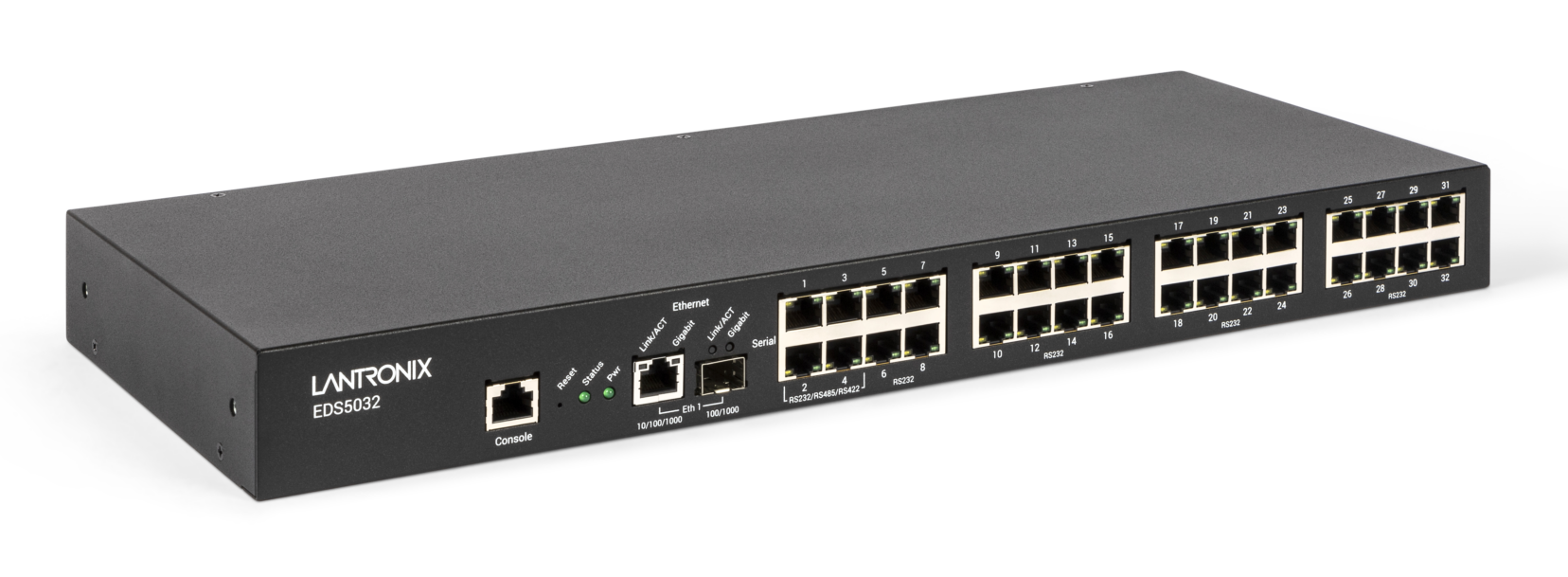

The EDS5000 Series is the next-generation, rack-mountable device server that supports 8, 16, and 32 serial ports to Ethernet (10/100/1000BASE-T or 100/1000 SFP) for easy remote access and management of virtually any serial-based equipment such as security equipment, medical devices, or POS terminals with data access speeds of up to 921.6 kbps baud rate.

EDS5000 device servers deliver an unprecedented level of intelligence and safety with SSL/ TLS and SSH security protocols as well as AES encryption. The EDS Series provides enterprise- level security, allowing safe remote Ethernet access and management to your serial equipment from practically anywhere.

Lantronix core software carries 30 years of ?data-center grade? protection, so each networked device has the same level of security as corporate data center equipment and provides robust defenses in hostile Internet attacks.

Setup is a breeze with Windows-based Lantronix Provisioning Manager, which can be used locally or remotely with the Lantronix Percepxion™ device management platform. Additionally, the EDS5000 family can be managed via a web browser or command line interface.

Monitor, manage, and control your devices from anywhere, anytime, with the ready-to-use software platform. The Percepxion platform provides software-defined automation across all your devices and the capture of device telemetry data for event management and analytics.

Features and Specifications

• CPU: NuMicro MA35DA
• 4 Gbit (512 MB) Flash
• On-board memory: 256MB Flash
• Ethernet 10/100/1000Mbps copper or 100/1000Mbps SFP

• Supports standard data rates from 2400 to 921.6K Baud
• Data bits 5,6,7,8
• Parity: Odd, Even, None
• Stop Bits: 1 or 2
• Modem Control Signals: CTS, RTS, DTR, DCD
• Flow Control: XON/XOFF (software), CTS/RTS (hardware), None
• Serial Signals:
  RS-232: TxD, RxD, RTS, CTS, DTR, DSR
  RS-422: Tx+, Tx-, Rx+, Rx-, GND
  RS-485-4W: Tx+, Tx=, Rx+, Rx-, GND
  RS-485-2W: Data+, Data-, GND

• 10/100/1000Mbps copper or 100/1000 Mbps SFP Ethernet (combo port)
• 8, 16, or 32 ports RJ45 software selectable serial ports
• Protocols: HTTP, HTTPS, FTP, TFTP, Telnet SSH, TCP, UDP, DHCP, SSHv2 , SSLv3, SNMP v2/v3, Auto IP, RSS, ARP, ICMP, SYSLOG, SMTP, DNS, BOOTP

• SSL 3, TLS 1.2, TLS 1.3
• MD5,SHA-1,SHA-2
• RSA-1024,2048,4096, DSA and ECDHE
• Password protection
• IP address filtering
• SNMP v2/v3
• HTTPS
• AES128, AES256
• Data traffic encryption
• Based on open SSL

• IPv4 and IPv6
• Internal web server, SNMP v1, SNMP v2, SNMP v3, Serial Login
• Telnet SSH login, XML
• Percepxion™ secure cloud and on-premise platform for remote device management
• Device status, device firmware and configuration updates, device reboot/reset/ shutdown, device telemetry and dashboard, remote access, CLI commands, Configuration Management, Mobile App
• Upgradeable FW via the Web Manager, Lantronix Provisioning Manager or Percepxion

• Operating: -10° to 60° C (14° to 140° F)
• Storage: -40° to 80° C (-40° to 176° F)
• Relative Humidity: 95%, non-condensing
• Ingress Protection: IP30

• 100-240VAC, 50/60 Hz IEC-type cord
• 24-48VDC, 1.0.A min
• 20 Watts

• FCC, IC, CE/UKCA,, UL/CB 62368

• Size: 44.3cm W x 17.5cm D x 4.36cm H (1 RU)
• Weight: 4.54 kg (10 lb)

• Hardware: 5 year
• Software: 1 year
• LEVEL Services available

Ordering Information

Accessories (sold separately)

• Lantronix EDS5000 Series Dataaheet (633.1 kB)
