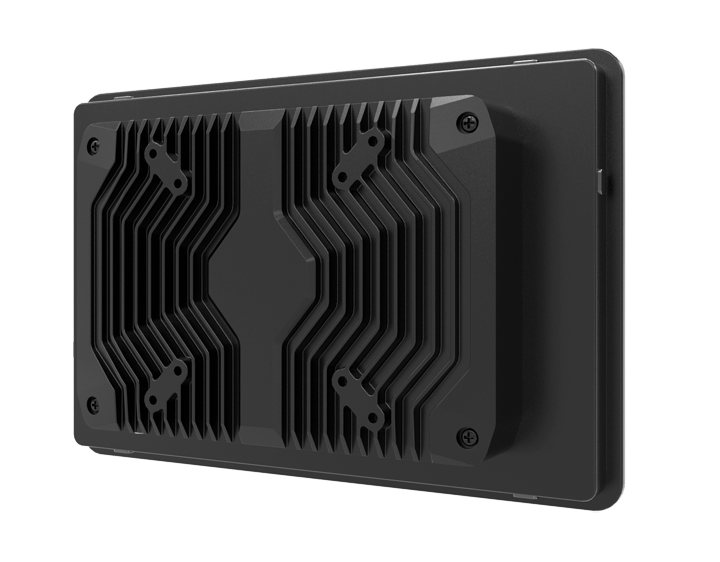

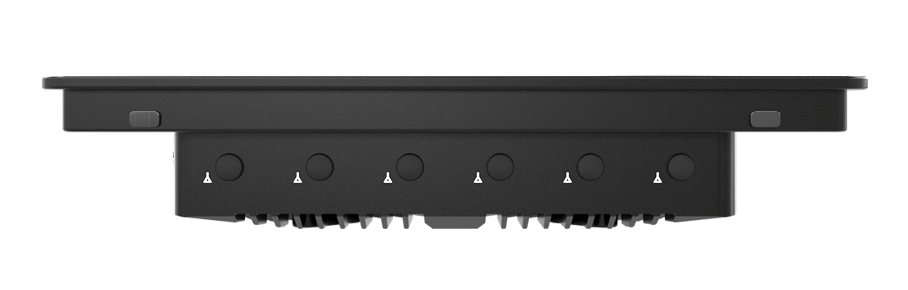

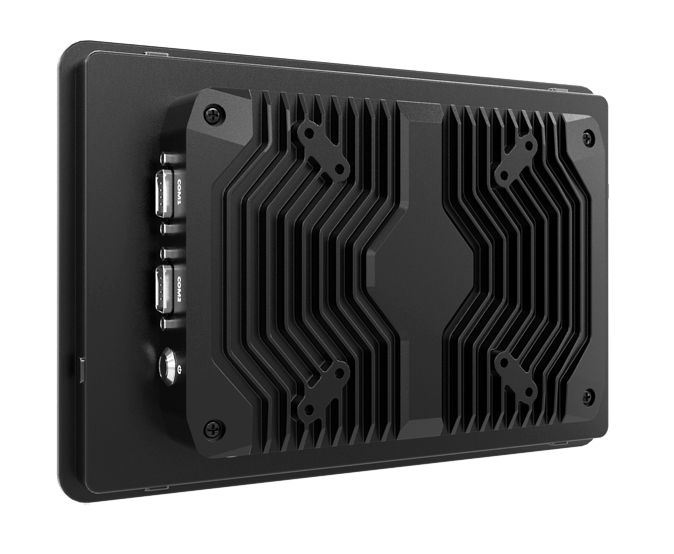

C&T Solution AIO-W210-ADL

10.1" WXGA Capacitive All IN One Touchscreen Computer with Intel® Alder lake N97 Processor

Specifications

Display


IP Rating Front
IP65

LCD Size
10.1" (16:10)

Max. Resolution
1280 x 800 (WXGA)

Brightness (cd/m²)
400 nits

Contrast Ratio
800:1

LCD Color
16.7M

Pixel Pitch (mm)
0.169(H) x 0.1695(V)

Viewing Angle
89/89/89/89 (Typ.) (CR>=10)

Backlight MTBF
30,000 Hours (LED Backlight)



Touch


Touch Type
Projected Capacitive Touch

Surface Hardness
7H / IK07



System


Processor
Intel® Processor N97 6M Cache, up to 3.60 GHz

System Chipset
SoC integrated

LAN
Chipset GbE1: Intel I225-V (Support Wake-on-LAN and PXE)
GbE1: Intel I225-V (Support Wake-on-LAN and PXE)

Audio Codec
Realtek ALC897

System Memory
DDR5 4800MT/s SODIMM. Max up to 16GB (Default: 8GB)

BIOS
AMI uEFI 8Mbit SPI BIOS

Watchdog
Software Programmable Supports 1~255 sec. System Reset



Storage


M.2 B Key
128G M.2 B Key SSD (Default)

SATA
1x SATA 3.0 6Gb/s port (Support AHCI)



Expansion


M.2 E Key
1x M.2 E Key Support WiFi 6e (Optional)



I/O


DisplayPort
1x DP, support 4096 x 2304 Real 4K @60Hz

HDMI
1x HDMI, support 3840 x 2160 UHD@30Hz

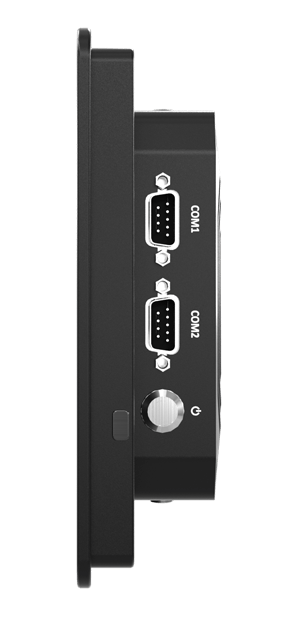

COM
2x RS-232/422/485

USB
4x USB 3.2 Gen 2

LAN
2x 2.5GbE LAN

Audio
1x Audio out

Others
Support up to 6x Antenna (optional)



Operating System


Windows
Windows 10 / Windows 11

Linux
Linux Ubuntu 22.04



Power


Power Adapter
60W (12V 5A, Default)

Power Supply Voltage
DC 12~36V

Power Connector
DC Jack 5.5mm/2.5mm



Environment


Operating Temperature
-10°C to 50°C

Storage Temperature
-20°C to 60°C

Relative Humidity
10% to 80% (non-condensing)

Certification
CE, FCC Class A, CB, UL 62368 Ed. 3, UKCA, IC

Vibration
IEC60068-2-64:2008
With SSD: 5 Grms (5 - 500 Hz, 0.5 hr/axis)
Designed to comply with MIL-STD-810G Method 514.7
Procedure I

Shock
IEC60068-2-27:2008
With SSD: 50G half-sin 11ms
Designed to comply with MIL-STD-810G Method 516.7
Procedure I



Physical


Dimensions
256 (W) x 170 (H) x 50 (D) mm

Weights
1.4 kg

Mounting Options
VESA Mount (75mm x 75mm/100mm x 100mm)
